Thiết Bị Đo Laser

• Highly dynamic measurements of all tool characteristics
• Non-contact measurement of all tool types, shapes and cutting materials
• Detection of changes in geometry such as wear on the cutting edge
• Consistently good part accuracy through process-integrated temperature compensation
• Reliable compensation of spindle growth and flight circle errors
• Automatic concentricity control detects bad tool holders and contamination
• Low-manned, automated operation
•
•
• Measuring and testing times reduced by up to 60%
• Thousands of measured values ​​of all cutting edges of a tool per second
• Evaluation of a data stream
• Dynamic adjustment of the measuring speed to the nominal speed of the tool
• Automatic filtering of dirt and coolant buildup on the tool
• Digiloge calibration with integrated concentricity control
• Process reliability under coolant in a new dimension
•
•

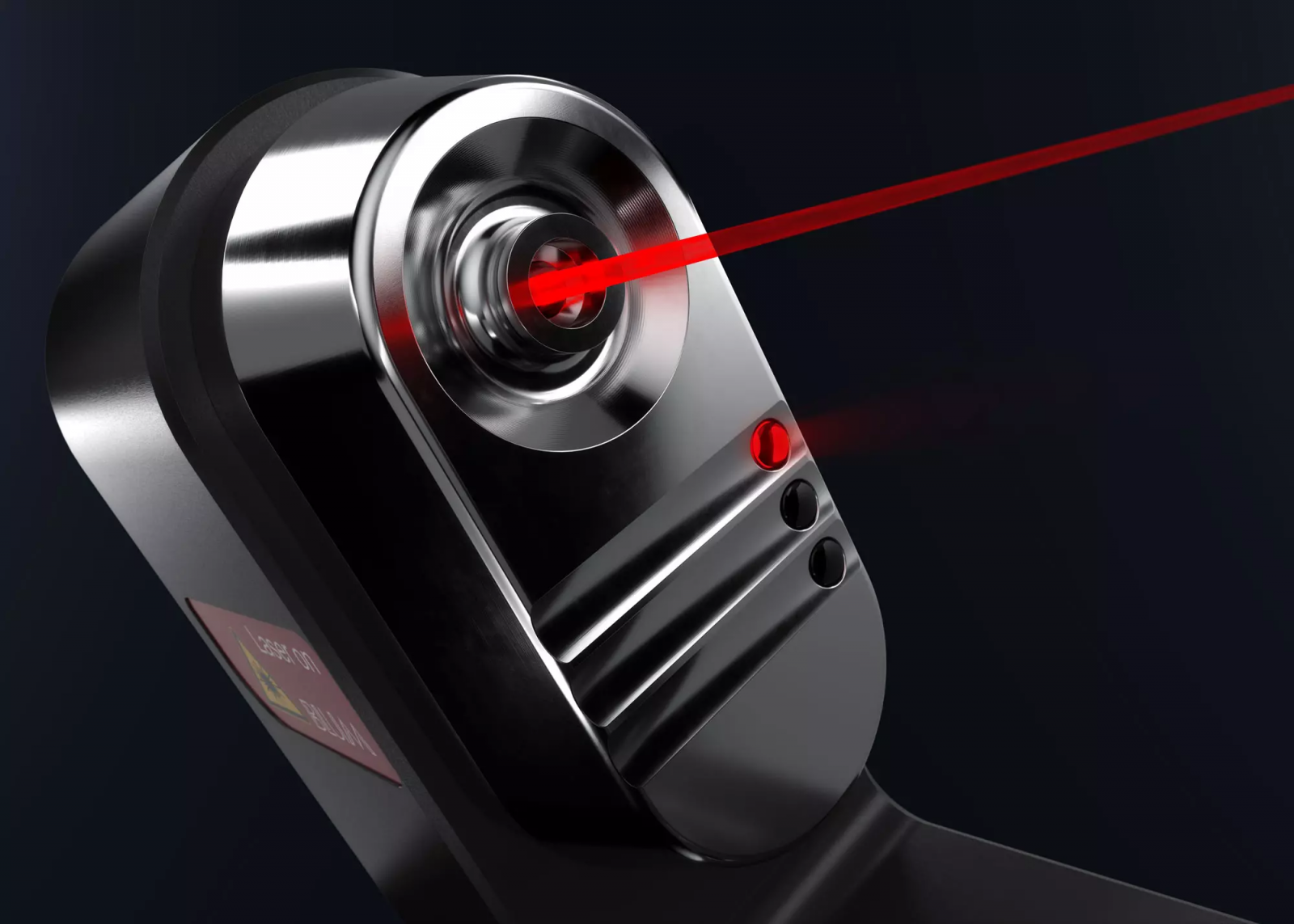

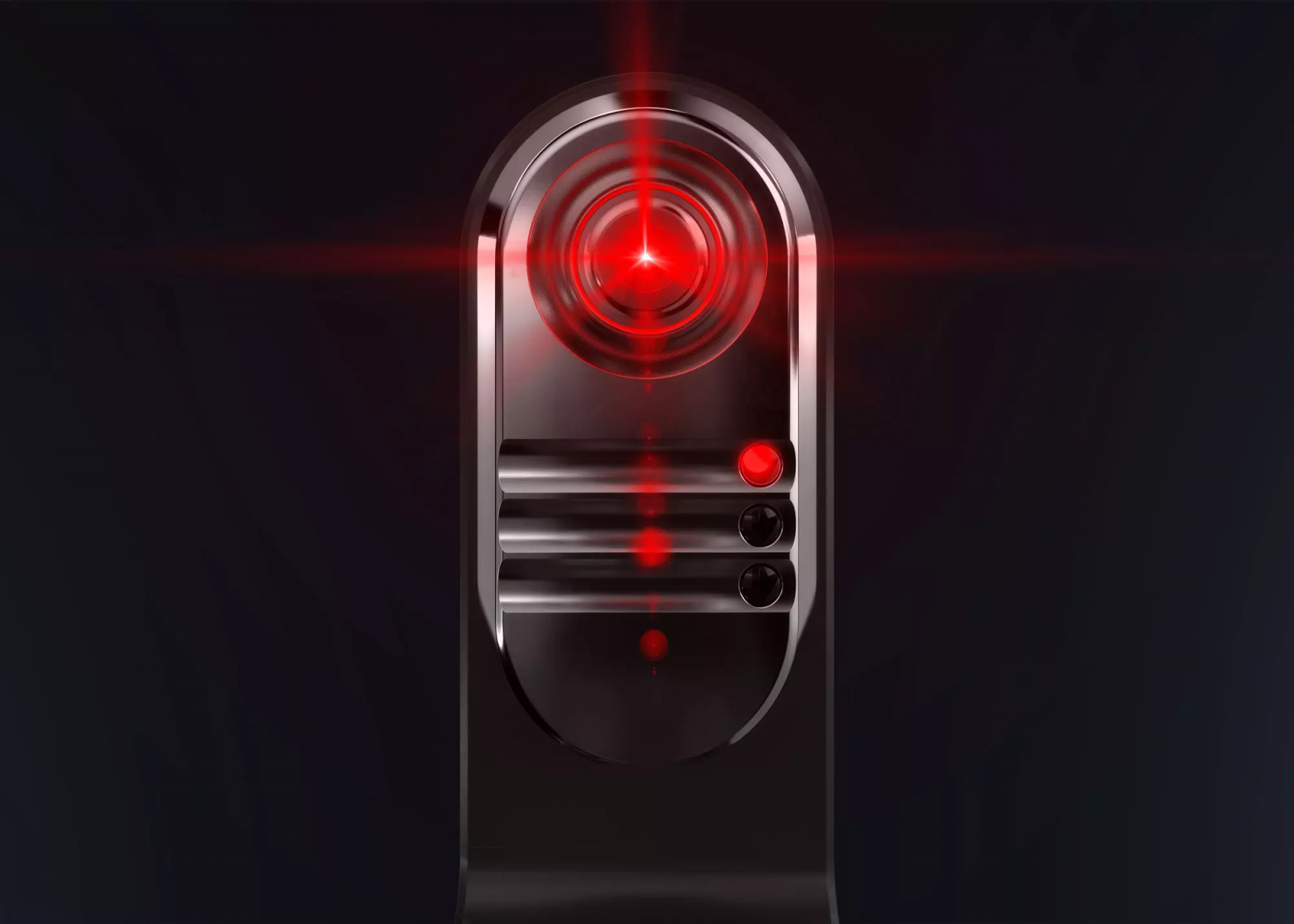

• High-end laser optics for the best performance under the most adverse conditions
• Repeatability in the nanometer range
• Highest absolute accuracy through focused laser beam
• Measurement of micro tools and the smallest cutting edge geometries
• Maximum homogeneous jet shape for the best results even with coolant mist
• Absolute accuracy beyond all comparable measuring systems
• Extremely powerful sealing air flow for the best protection of the optics
• Explosive cleaning of the aperture
•

• Technical specifications

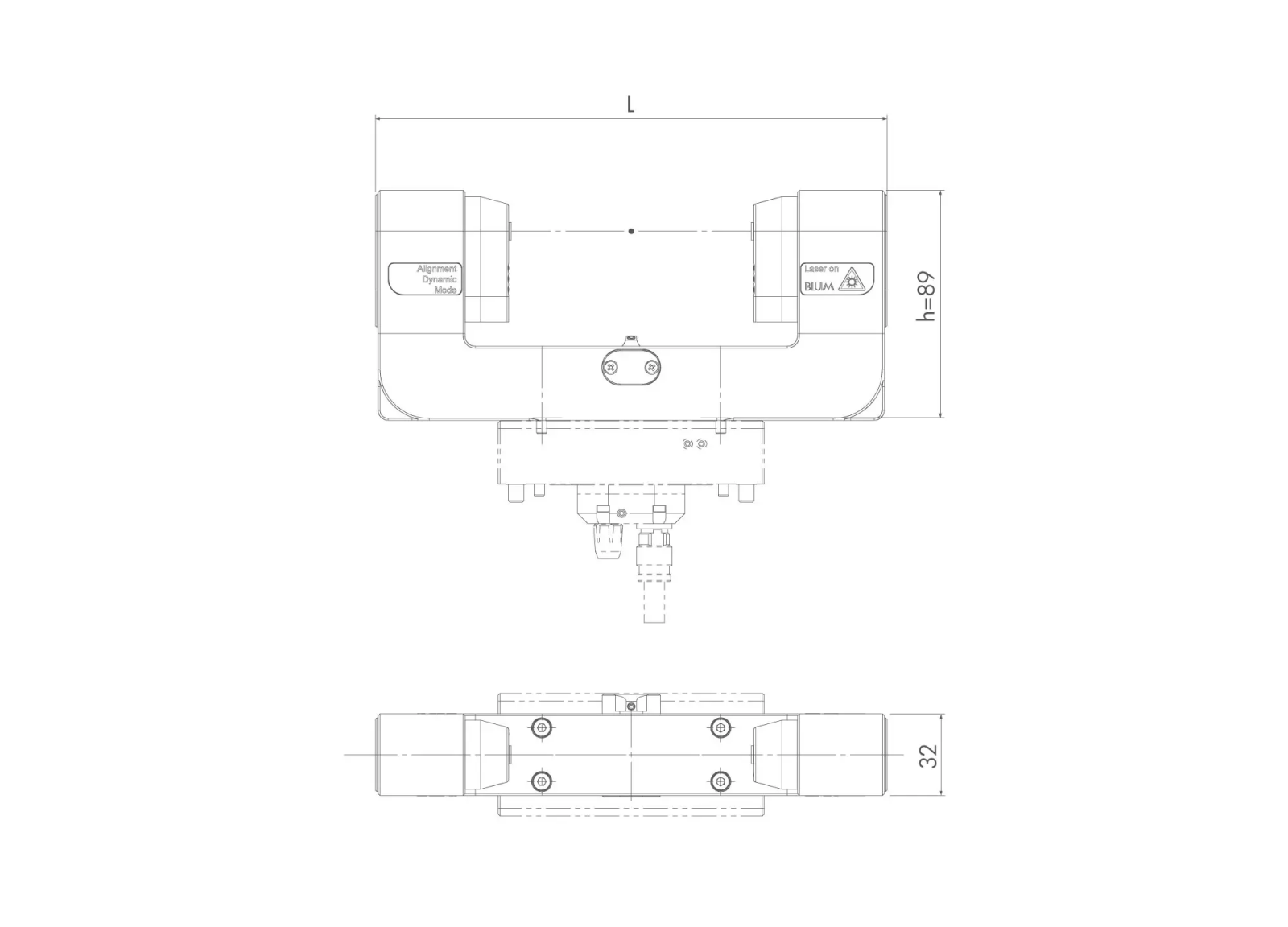

  system length	150mm	200mm	260mm	300mm	400mm	500mm
  Max. tool Ø*	36mm	120mm	314mm	498mm	1154mm	2087mm
  Minimum tool Ø**	5***/15 µm	20 microns	30 microns	37 microns	49 µm	66 microns
  repeatability**	0.2 µm 2σ	0.3 µm 2σ	0.4 µm 2σ	0.5 µm 2σ	0.7 µm 2σ	0.9 µm 2σ


  * Danger of collision if the tool diameter is larger than the opening width. Observe the operating instructions! ** Depending on the installation situation and stability of the attachment *** Consultation with local BLUM representative required.

  Further information can be found in the respective brochure and in the operating instructions.


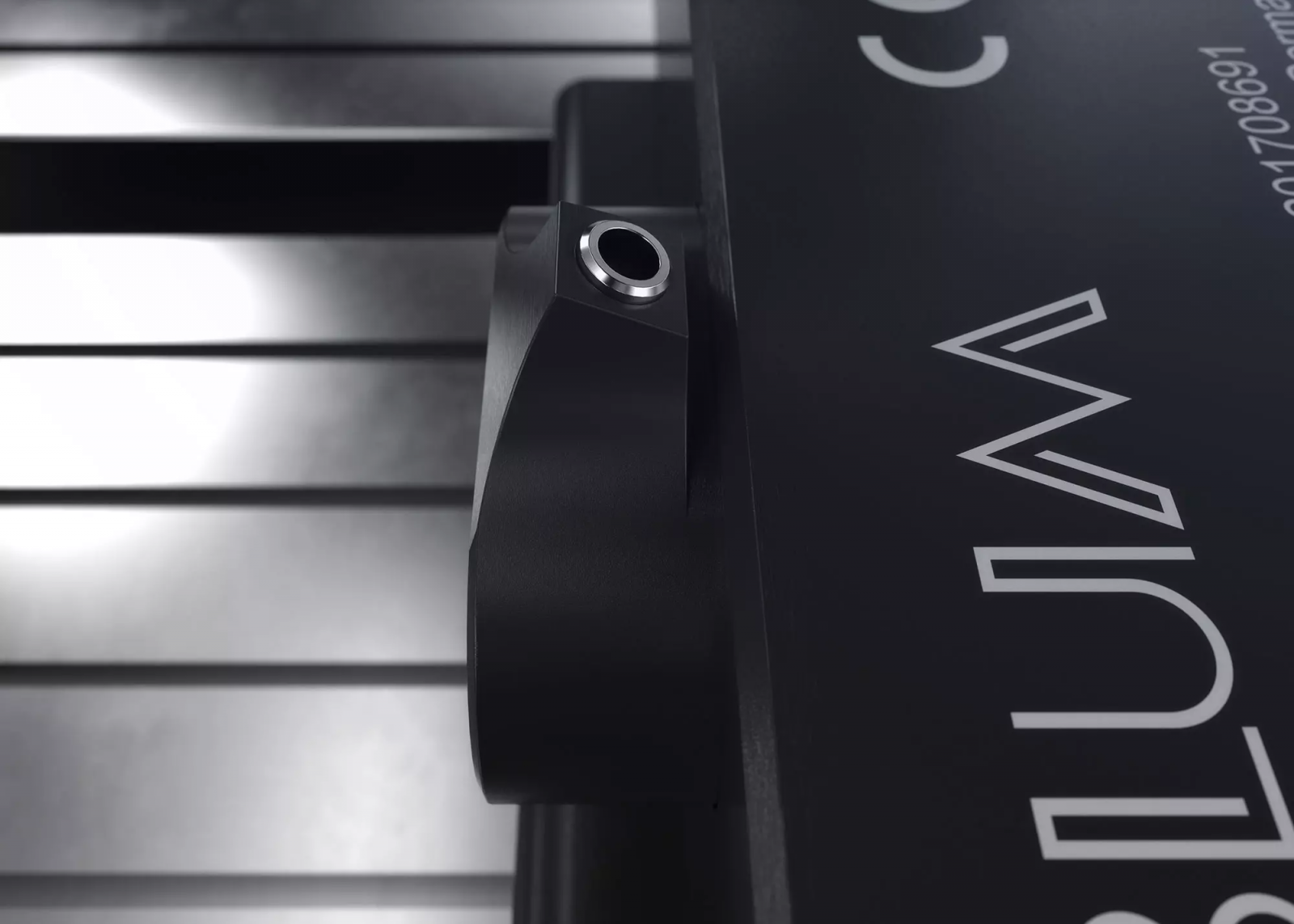

  The completely newly developed HPC nozzle guarantees quick and residue-free cleaning of coolant, chips and other dirt.

  • Highest possible cleaning pressure
  • Perfect air jet formation, concentrated on the measuring point
  • Integrated check valve
  • Mountable on both sides
  •

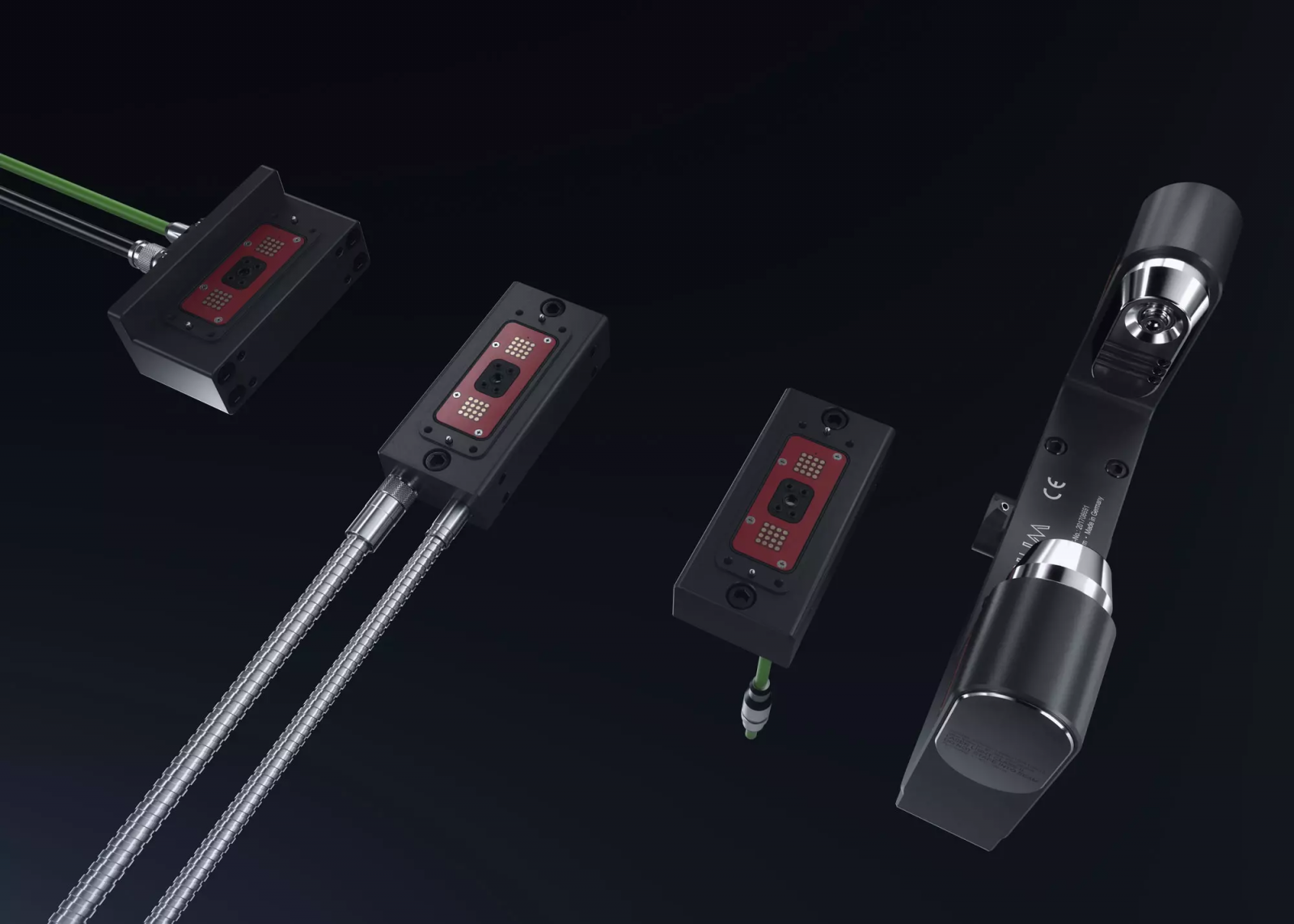

  • The smartDock is a worldwide unique standard interface for all carrier systems of the current BLUM laser measurement system series.
    • 3 variants for flexible assembly
    • Only 2 connection lines
    • High-end pneumatic valves with the shortest switching times
    • No separate pneumatic unit required
    • Compatible with all system variants
    • Easy changeover to new tool sizes
    • Fast replacement for minimum machine downtime
    • Laser preparations easily realizable

Innovative measurement and visualization software for DIGILOG laser measurement systems from BLUM

• Easy creation of measurement sequences
• Operation and visualization on the control screen
• Intelligent evaluation functions to increase processing quality
• Logging and statistical analysis
