• Dao Phay Bo Góc R 4 Me Cổ Dài Union Tool Model HLRS4000 ảnh 1

Dao Phay Bo Góc R 4 Me Cổ Dài Union Tool Model HLRS4000

Tình trạng: Còn hàng

Giá bán: Liên hệ


Dao Phay Bo Góc R 4 Me Cổ Dài Union Tool Model HLRS4000

Hãng sản suất: Union Tool (Nhật Bản)

Mã sản phẩm: HLRS4000

Vật liệu: Hợp kim siêu cứng MG (Super MG Carbide)

Kích thước: Φ0.2 ~ Φ6; r0.02 ~ r1.0

Số lưỡi cắt: 4 me

Góc xoắn: 30°

Lớp phủ: HARD MAX

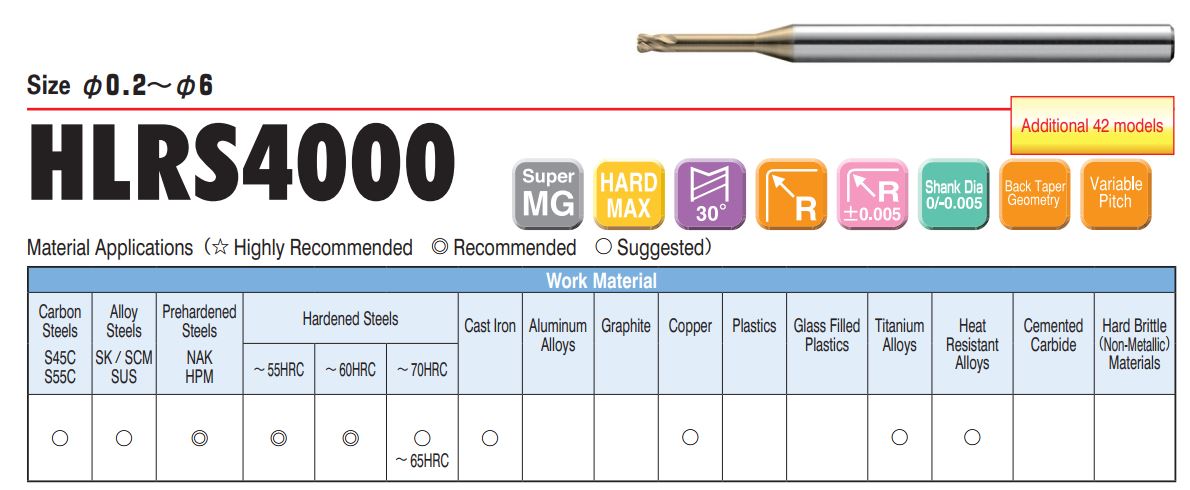

Độ cứng vật liệu gia công được: 65HRC.

Thích hợp: gia công khuôn mẫu sau nhiệt 40HRC – 65HRC.

Ứng dụng: Phay thép có độ cứng cao, thép sau nhiệt






Dao Phay Bo Góc R 4 Me Cổ Dài Union Tool Model HLRS4000

Hãng sản suất: Union Tool (Nhật Bản)

Mã sản phẩm: HLRS4000

Vật liệu: Hợp kim siêu cứng MG (Super MG Carbide)

Kích thước: Φ0.2 ~ Φ6; r0.02 ~ r1.0

Số lưỡi cắt: 4 me

Góc xoắn: 30°

Lớp phủ: HARD MAX

Độ cứng vật liệu gia công được: 65HRC.

Thích hợp: gia công khuôn mẫu sau nhiệt 40HRC – 65HRC.

Ứng dụng: Phay thép có độ cứng cao, thép sau nhiệt

Model Number Outside Diameter
φD		 Corner Radius CR Effective Length
ℓ1		 Length of Cut
ℓ		 Neck Diameter
φd1		 Shank Taper Angle Bta Overall Length L Shank Diameter
φd
HLRS 4002-002-003 0.2 R0.02 0.3 0.12 0.185 16° 50 4
HLRS 4002-002-005 0.5 50 4
HLRS 4002-002-010 1 50 4
HLRS 4002-002-015 1.5 50 4
HLRS 4002-002-020 2 50 4
HLRS 4002-005-003 R0.05 0.3 50 4
HLRS 4003-002-003 0.3 R0.02 0.3 0.18 0.28 16° 50 4
HLRS 4003-002-005 0.5 50 4
HLRS 4003-002-010 1 50 4
HLRS 4003-002-015 1.5 50 4
HLRS 4003-002-020 2 50 4
HLRS 4003-005-003 R0.05 0.3 50 4
HLRS 4003-005-005 0.5 50 4
HLRS 4004-002-005 0.4 R0.02 0.5 0.24 0.385 16° 50 4
HLRS 4004-002-010 1 50 4
HLRS 4004-002-020 2 50 4
HLRS 4004-005-005 R0.05 0.5 50 4
HLRS 4004-005-010 1 50 4
HLRS 4004-005-015 1.5 50 4
HLRS 4004-005-020 2 50 4
HLRS 4004-01-010 R0.1 1 50 4
HLRS 4004-01-020 2 50 4
HLRS 4005-002-010 0.5 R0.02 1 0.3 0.485 16° 50 4
HLRS 4005-002-020 2 50 4
HLRS 4005-005-010 R0.05 1 50 4
HLRS 4005-005-020 2 50 4
HLRS 4005-01-010 R0.1 1 50 4
HLRS 4005-01-020 2 50 4
HLRS 4006-005-020 0.6 R0.05 2 0.36 0.585 16° 50 4
HLRS 4006-005-040 4 50 4
HLRS 4006-01-020 R0.1 2 50 4
HLRS 4006-01-040 4 50 4
HLRS 4008-002-020 0.8 R0.02 2 0.48 0.78 16° 50 4
HLRS 4008-002-030 3 50 4
HLRS 4008-002-040 4 50 4
HLRS 4008-002-060 6 50 4
HLRS 4008-002-080 8 50 4
HLRS 4008-005-020 R0.05 2 50 4
HLRS 4008-005-030 3 50 4
HLRS 4008-005-040 4 50 4
HLRS 4008-005-060 6 50 4
HLRS 4008-01-020 R0.1 2 50 4
HLRS 4008-01-030 3 50 4
HLRS 4008-01-040 4 50 4
HLRS 4008-01-060 6 50 4
HLRS 4008-02-020 R0.2 2 50 4
HLRS 4008-02-030 3 50 4
HLRS 4008-02-040 4 50 4
HLRS 4008-02-060 6 50 4
HLRS 4010-002-020 1 R0.02 2 0.8 0.95 16° 50 4
HLRS 4010-002-030 3 50 4
HLRS 4010-002-040 4 50 4
HLRS 4010-002-050 5 50 4
HLRS 4010-002-060 6 50 4
HLRS 4010-002-080 8 50 4
HLRS 4010-002-100 10 50 4
HLRS 4010-002-120 12 55 4
HLRS 4010-005-020 R0.05 2 50 4
HLRS 4010-005-030 3 50 4
HLRS 4010-005-040 4 50 4
HLRS 4010-005-050 1 R0.05 5 0.8 0.95 16° 50 4
HLRS 4010-005-060 6 50 4
HLRS 4010-005-080 8 50 4
HLRS 4010-005-100 10 50 4
HLRS 4010-005-120 12 55 4
HLRS 4010-01-020 R0.1 2 50 4
HLRS 4010-01-030 3 50 4
HLRS 4010-01-040 4 50 4
HLRS 4010-01-050 5 50 4
HLRS 4010-01-060 6 50 4
HLRS 4010-01-080 8 50 4
HLRS 4010-01-100 10 50 4
HLRS 4010-01-120 12 55 4
HLRS 4010-02-020 R0.2 2 50 4
HLRS 4010-02-030 3 50 4
HLRS 4010-02-040 4 50 4
HLRS 4010-02-050 5 50 4
HLRS 4010-02-060 6 50 4
HLRS 4010-02-080 8 50 4
HLRS 4010-02-100 10 50 4
HLRS 4010-02-120 12 55 4
HLRS 4010-03-020 R0.3 2 50 4
HLRS 4010-03-030 3 50 4
HLRS 4010-03-040 4 50 4
HLRS 4010-03-050 5 50 4
HLRS 4010-03-060 6 50 4
HLRS 4010-03-080 8 50 4
HLRS 4010-03-100 10 50 4
HLRS 4010-03-120 12 55 4
HLRS 4010-03-160 16 60 4
HLRS 4012-01-040 1.2 R0.1 4 0.96 1.14 16° 50 4
HLRS 4012-01-060 6 50 4
HLRS 4012-01-100 10 50 4
HLRS 4012-02-040 R0.2 4 50 4
HLRS 4012-02-060 6 50 4
HLRS 4012-02-100 10 50 4
HLRS 4012-03-040 R0.3 4 50 4
HLRS 4012-03-060 6 50 4
HLRS 4012-03-100 10 50 4
HLRS 4015-005-030 1.5 R0.05 3 1.2 1.45 16° 50 4
HLRS 4015-005-040 4 50 4
HLRS 4015-005-060 6 50 4
HLRS 4015-005-080 8 50 4
HLRS 4015-005-120 12 55 4
HLRS 4015-005-160 16 60 4
HLRS 4015-01-030 R0.1 3 50 4
HLRS 4015-01-040 4 50 4
HLRS 4015-01-060 6 50 4
HLRS 4015-01-080 8 50 4
HLRS 4015-01-100 10 50 4
HLRS 4015-01-120 12 55 4
HLRS 4015-01-160 16 60 4
HLRS 4015-01-180 18 60 4
HLRS 4015-02-030 R0.2 3 50 4
HLRS 4015-02-040 4 50 4
HLRS 4015-02-060 6 50 4
HLRS 4015-02-080 8 50 4
HLRS 4015-02-100 10 50 4
HLRS 4015-02-120 12 55 4
HLRS 4015-02-160 16 60 4
HLRS 4015-02-180 18 60 4
HLRS 4015-03-030 R0.3 3 50 4
HLRS 4015-03-040 4 50 4
HLRS 4015-03-060 6 50 4
HLRS 4015-03-080 8 50 4
HLRS 4015-03-100 10 50 4
HLRS 4015-03-120 12 55 4
HLRS 4015-03-160 16 60 4
HLRS 4015-03-180 18 60 4
HLRS 4015-05-030 R0.5 3 50 4
HLRS 4015-05-040 4 50 4
HLRS 4015-05-060 6 50 4
HLRS 4015-05-080 8 50 4
HLRS 4015-05-100 10 50 4
HLRS 4015-05-120 12 55 4
HLRS 4015-05-160 16 60 4
HLRS 4015-05-180 18 60 4
HLRS 4018-02-080 1.8 R0.2 8 1.44 1.72 16° 50 4
HLRS 4018-02-100 10   50 4
HLRS 4018-02-120 12   55 4
HLRS 4018-02-140 14   55 4
HLRS 4018-02-160 16   60 4
HLRS 4020-002-040 2 R0.02 4 1.6 1.92 16° 50 4
HLRS 4020-002-060 6   50 4
HLRS 4020-002-080 8   50 4
HLRS 4020-002-100 10   50 4
HLRS 4020-002-120 12   55 4
HLRS 4020-002-160 16   60 4
HLRS 4020-002-200 20   60 4
HLRS 4020-005-040 R0.05 4   50 4
HLRS 4020-005-060 6   50 4
HLRS 4020-005-080 8   50 4
HLRS 4020-005-100 10   50 4
HLRS 4020-005-120 12   55 4
HLRS 4020-005-160 16   60 4
HLRS 4020-005-200 20   60 4
HLRS 4020-01-040 R0.1 4   50 4
HLRS 4020-01-060 6   50 4
HLRS 4020-01-080 8   50 4
HLRS 4020-01-100 10   50 4
HLRS 4020-01-120 12   55 4
HLRS 4020-01-160 16   60 4
HLRS 4020-01-200 20   60 4
HLRS 4020-01-240 24   70 4
HLRS 4020-02-040 R0.2 4   50 4
HLRS 4020-02-060 6   50 4
HLRS 4020-02-080 8   50 4
HLRS 4020-02-100 10   50 4
HLRS 4020-02-120 12   55 4
HLRS 4020-02-160 16   60 4
HLRS 4020-02-200 20   60 4
HLRS 4020-02-240 24   70 4
HLRS 4020-03-040 R0.3 4   50 4
HLRS 4020-03-060 6   50 4
HLRS 4020-03-080 8   50 4
HLRS 4020-03-100 10   50 4
HLRS 4020-03-120 12   55 4
HLRS 4020-03-160 16   60 4
HLRS 4020-03-200 20   60 4
HLRS 4020-03-240 24   70 4
HLRS 4020-05-040 2 R0.5 4 1.6 1.92 16° 50 4
HLRS 4020-05-060 6 50 4
HLRS 4020-05-080 8 50 4
HLRS 4020-05-100 10 50 4
HLRS 4020-05-120 12 55 4
HLRS 4020-05-160 16 60 4
HLRS 4020-05-200 20 60 4
HLRS 4020-05-240 24 70 4
HLRS 4020-05-260 26 70 4
HLRS 4020-05-300 30 70 4
